SKUCE7000-130 Category

Graphtec CE7000 Series Cutting Plotter 54 inch

Perfect For:

  • Stone Masons
  • Sign Shops
  • Apparel Markets
  • Window Tint
  • Glass Etching
  • Paint Stencil

The Graphtec CE7000 Series Cutting Plotters are one of the most popular
and cost effective plotter ranges on the market for users who are based in
a smaller work space or use lighter grade materials.

The CE7000 Series’ robust, no-nonsense engineering class design and build
makes it perfect for life on the print shop floor and is perfect for
sublimation, stone masonry and sign writing applications.

The CE7000 Series is equipped with great features such as a registration
mark sensor for print & cut jobs, perforation cutting ability and a
guaranteed cut accuracy of up to 5m at an extremely competitive and cost
effective price point.

Cost Effective | Highly Efficient |
Professional Features

Machine Specifications:

  • Configuration: Grit Rolling Type
  • Drive Method: Digital Servo Drive System
  • Graphic LCD Display With Back Light
  • Networking Ethernet Port
  • Mountable Number Of Tools: 1 Tool
  • Maximum Cutting Force: 450g
  • Maximum Cutting Speed: Up To 1000mm/s (140 & 160 Models)
  • Perforation Cutting: Yes (Performed By Force Control)
  • Interface: USB 2.0 Offline | USB 2.0 Cable
  • Buffer Memory: 2MB

Performance Specifications:

  • Media Tracking Distance: Up To 5m
  • Minimum Character Size: Approx. 5mm Alphanumeric (Varies
    Depending On Character Font & Type Of Media)
  • Programmable Resolution: GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm,
    HP-GL™: 0.025 mm
  • Repeat-ability: Max. 0.1 mm In Plot up to 2m
  • Media Type: Self-Adhesive Marking Film Up To 0.25mm

Machine Includes:

  • Stand
  • USB Cable: 2.9m Long
  • Manual

Included Accessories:

  • Cutting Blade Holder: PHP33-CB09N-HS
  • Cutting Blade: CB09UB
  • Loupe: PM-CT-001 For Checking Blade Condition
  • Separate Cutter: For Sheeting Off Jobs On Completion
  • Fibre-Tipped Pen Holder: PHP31-FIBER
  • Water-Based Fibre Tipped Pen: KF700-BK


CE7000 Plus Series: Operation

The CE7000 is easy to use which follows Graphtec’s ethos of
ensuring all of their products are highly intuitive, simple to
operate and extremely efficient.

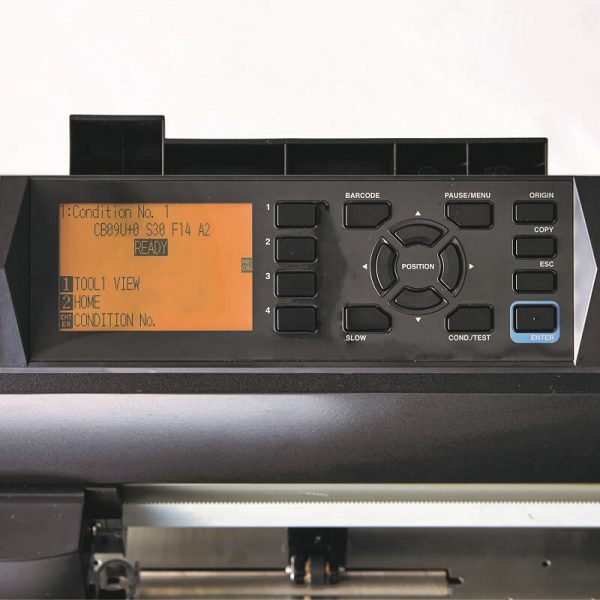

The plotter is driven by an large backlit LCD screen and tactile
control panel which is used to quickly and easily adjust user
settings, automatic registration mark sensing system and to
support print and cut alignment which is crucial to ensure you
achieve the best cut every time.

User Modes

Simple Mode: This mode automatically sets the
necessary cutting conditions need to cut through the chosen media
type which is perfect for operators who are new to the machine.

Normal Mode: This mode is user driven and lets allows
the user to use all functions and settings to tune the plotter in
for specific operator requirements. Using this mode allows
operators to set up to 8 separate cutting conditions which can be
linked to specific materials and saved within the machines memory
for future use.

Cutting Plotter

54" Grid Rolling Cutting Plotter
